In Line式在線測試儀

技術參數 Technical Date

★設備效率：900~1200PCS/H

★設備精度：±0.3mm

★伺服系統：三菱

★PLC控制：三菱

★人機界面：信捷

★絲桿/導軌：采用HIWIN精密滾珠絲桿和直線加寬導軌

★減速機：TWT

★氣動元件：SMC(日本)或亞德客

★D：OMROM或基恩士

★設備外形尺寸：1850mm(L)*1300mm(W)*1700(H)mm

★設備總重量：約400KG Total

★設備總功率：約0.37KW Total

★氣壓（Mpa）：0.4～0.6Mpa

★工作電壓:AC220V50~60HZ

★Equipment efficiency: 900 ~ 1200PCS / H

★Equipment Accuracy (mm): ± 0.3mm

★Servosystem: Mitsubishi

★PLC control system: Mitsubishi

★HMI: XINJE

★Screw / rail: The HIWIN precision ball screw & Straight line widening

★Reducer: TWT

★Pneumatic components: SMC (Japan) or Airtac

★D: OMRON  or Keyence

★Equipment Dimensions: 1850mm (*) * 1300mm (W) * 1700 (H) mm

★Total weight: about 400KG

★Total power: about 0.37KW

★Air pressure (Mpa): 0.4 ~ 0.6Mpa

★Operating voltage: AC220V50 ~ 60HZ

功能介紹 Function Ineroduction

★全自動INLINE設計方式,無需人工操作

★ICT靜態+動態測試(根據客戶需求配備)

★自動區分良品/不良品產品。

★自動讀寫條碼功能(根據客戶需求配備掃描槍或CCD)

★測試前PCBA方向檢測

★測試速度比手工快30%以上，無人化作業，比手工操作減少1人

★ICT測試治具只需修改載板可直接安裝使用

★Designed by full-automatic，Manual operation un-necessary

★ICT Static&Dynamic testing(According to customers requirements

★Distinguished PASS OR FAIL products automatically.

★Bar-code reading automatically.( According customer's requirements to provide scanner or CCD)

★PCBA direction confrimed before testing.

★Faster than manual testing about 30% or more, unmanned operation than manual operation reduced 1 operator at least.

★ICT test fixture can be installed directly just modify the carrier plate .

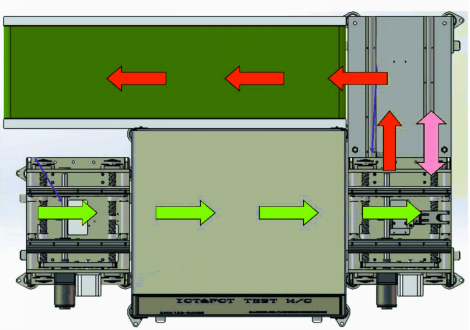

設備運行流程 Running Processes of equipent

待測產品及PASS產品運行方向

Running direction of untreated and PASS products

FAIL產品運行方向

Running direction of FAIL products

移栽機運行方向

Running direction ofTransfer machine

移栽機Transfer machine

待測產品等待工位(此工位完成條碼讀寫及PCBA方向檢測)

The waiting station of not test products（It can complete the Bar code reading and  PCBA direction detection）

ICT OR FCT

檢測機TESTER

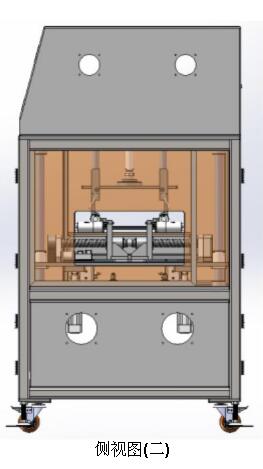

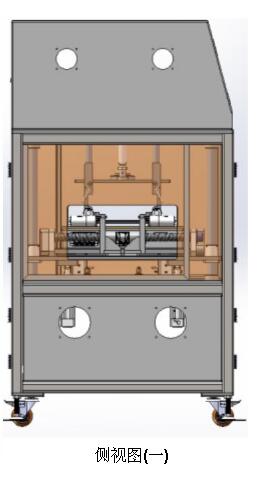

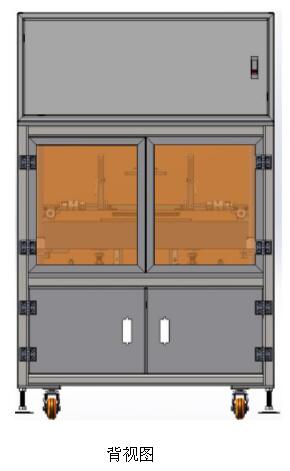

設備視圖 Equipent view
